In-depth understanding of the internal structure and principle of ultra-fine grinding mill

Everyone knows that the ultra-fine grinding mill is the most popular grinding equipment among the ore milling equipment. Today Clirik will introduce you to the internal structure and principle of the ultrafine mill, on the one hand, in order to respond to the call of the majority of consulting users On the one hand, it is to let more buyers understand our products in depth.
In fact, the ultra-fine grinding mill is not so mysterious, and the appearance of the products that users search on the Internet does not differ much. It is mainly reflected in the different manifestations of the manufacturing technology of the manufacturers during manufacturing, so the processing technology of each manufacturer's products is very different. This requires the purchaser's on-site inspection and will be discovered through comparison. It is mainly reflected in the internal structure and processing principle. Let’s take a look at the internal structure and principle of Clirik ultra-fine grinding mill.

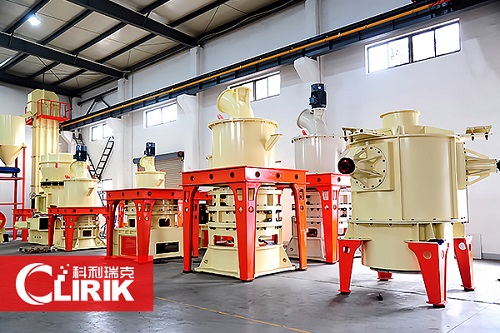

ultra-fine grinding mill
The production line of ultra-fine grinding mill is mainly equipped with hammer crusher (jaw crusher, impact crusher), bucket elevator, conveyor, storage silo, vibrating feeder, ultrafine grinding host, frequency conversion classification Machine, double cyclone dust collector, pulse dust removal system, high pressure fan, air compressor, electrical control system, etc. The bulk material is crushed by the crusher into the feed particle size (about 1cm) suitable for the operation of the ultra-fine mill, and then the milling machine analysis machine speed is adjusted to achieve the fineness suitable for the production requirements.
Ultra-fine grinding mill manufacturer
According to the combination of such structures, we can further understand the principle of the ultra-fine grinding mill. For the processing of materials, a reasonable production system is needed. When the ultrafine mill is working, the main motor drives the main shaft and turntable to rotate through the reducer, and the roller pins on the edge of the turntable drive dozens of grinding rollers to roll in the grinding ring raceway. The large pieces of material are broken into small particles by the hammer crusher and then sent to the storage bin by the elevator, and then through the vibrating feeder and the inclined feed pipe, the material is evenly sent to the upper bulk disk of the turntable. It is impacted, rolled and grinded by the ring roller in the ring of the grinding ring, and becomes powder after three-layer ring processing.

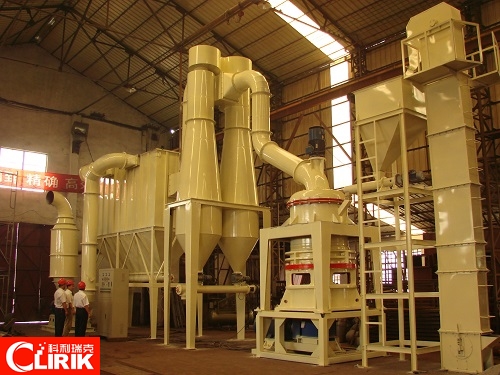

ultra-fine grinding mill
Through the analysis of the internal structure and principle of the ultra-fine mill, we can find out why the ultra-fine grinding mill can be favored and praised by so many users in the powder machining market today. The poor Japanese meeting guests will also continue to work hard to make the internal structure and principle of our product ultra-fine mill to a higher level.

If you want to know the ultra-fine grinding mill price or have any questions about ultra-fine grinding mill, please do not hesitate to contact us.
