Ceramic ultra fine grinding machine
Ceramic ultra fine grinding machine

Ceramic ultra fine grinding machine

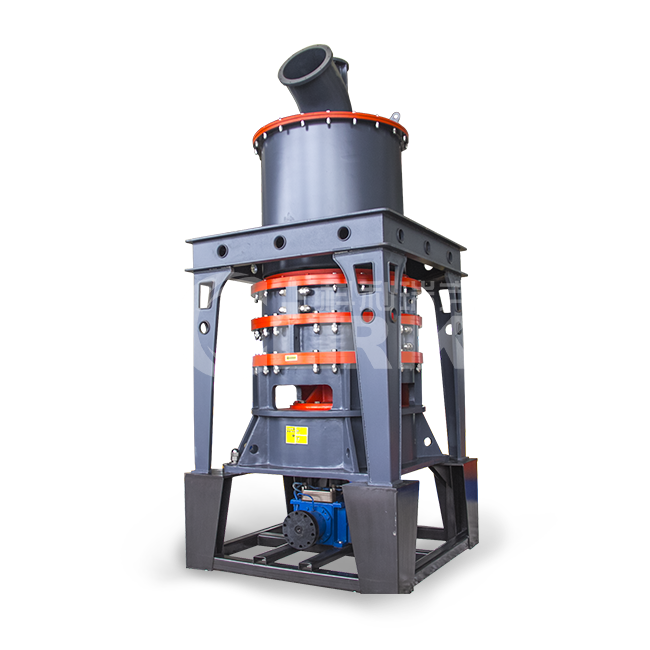

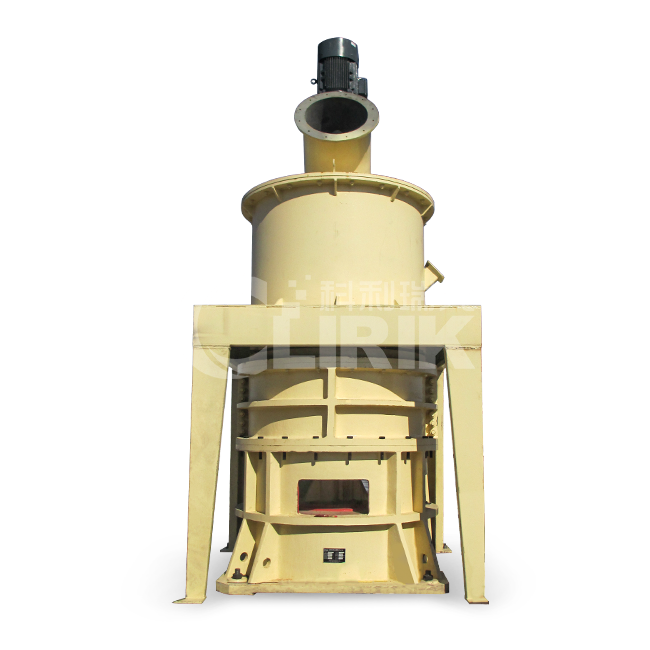

Ceramic ultra fine grinding machine is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh. Ceramic ultra fine grinding machine: finished production fineness: 300meshes~3000meshes, 5-47
Send Inquiry
Product Introduction

Ceramic ultra fine grinding machine is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh.


Ceramic ultra fine grinding machine:


—— finished production fineness: 300meshes~3000meshes, 5-47 micron

—— the capacity (ton/hour) ranges from 0.4T/H to 12T/H

—— five models: HGM80, HGM90, HGM100, HGM100A, and HGM125

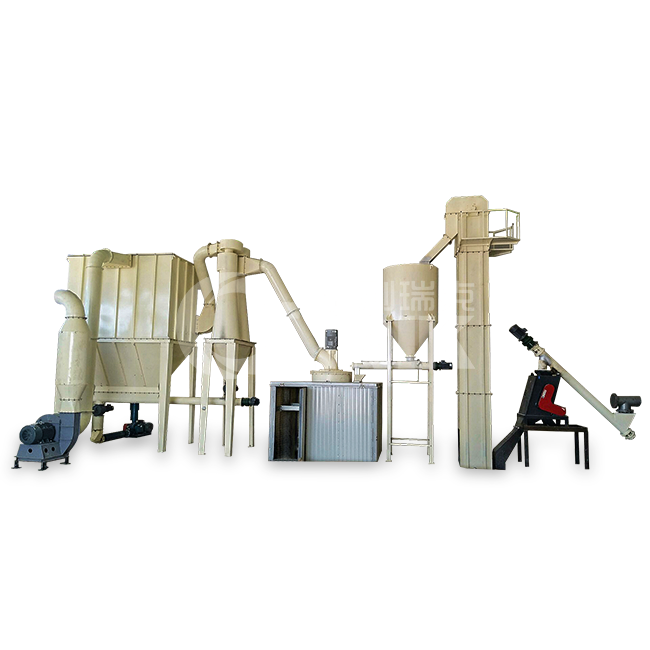

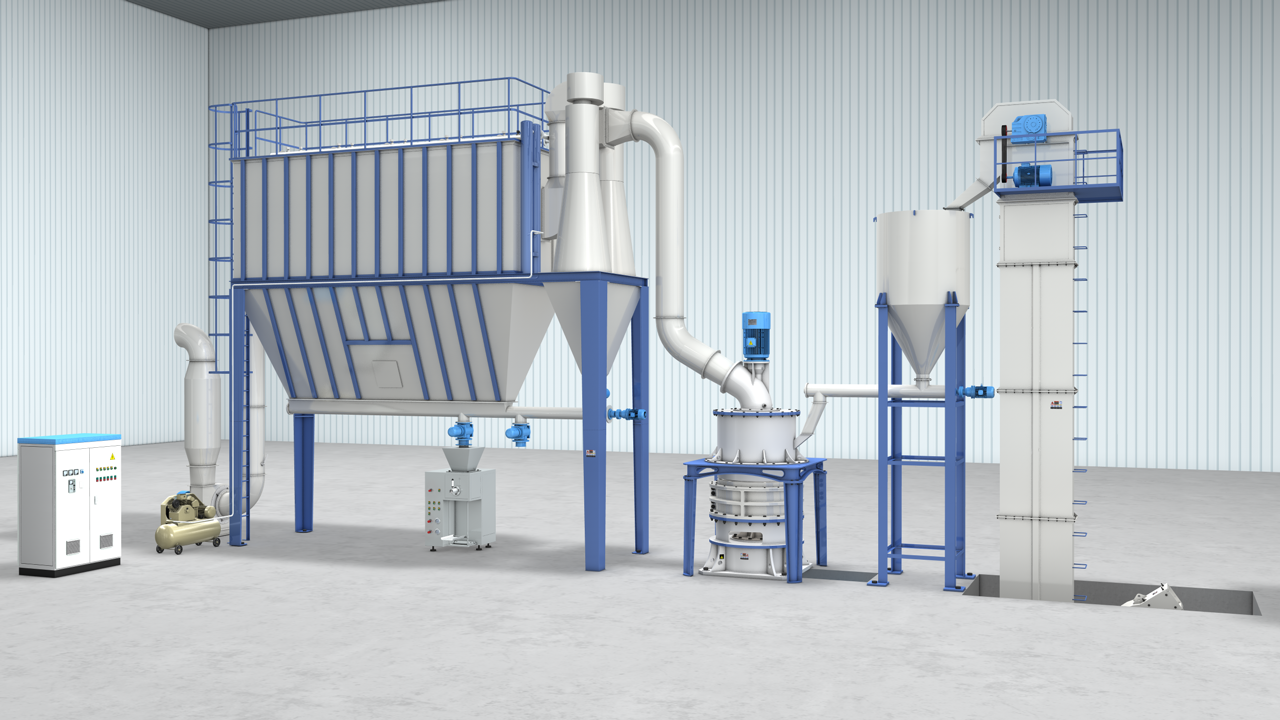

The whole set Ceramic ultra fine grinding machine consists of:


1). Hammer crusher, bucket elevator, storage hopper, vibrating feeder,

2). Main unit, inverter classifier, cyclone collector, pulse deduster system,

3). High pressure positive blower, air compressors and electrical control systems.

ultrafine powder mill



Features and advantages of Ceramic ultra fine grinding machine:


1) High efficiency

2) Long lifecycle of milling machine spare parts.

3) High safety and reliability

4) High fineness and flexible adjustment

5) Environment-friendly

6) Advanced intelligent speed control device


Technical data of Ceramic ultra fine grinding machine:

Model

HGM80

HGM90

HGM100

HGM100A

HGM125

Ring Diameter(mm)

800

930

1035

1035

1300

Ring Number (PCS)

3

3-4

3

4

4

Roller Number(PCS)

21

24-32

27

34-36

40-44

Main Shaft Speed (r. p. min)

230-240

200-220

180-200

180-200

135-155

Input Size (mm)

≤20

Finished Size (um)

5-47(325-2500)

Capacity (t/h)

0.5-4.5

0.6-6.5

0.7-7

1-8.5

1.5-12

Outlet Size L*W*H (m)

13.9*4*6.2

14.7*4.8*7.2

18*4.6*8.6

18*4.6*8.6

14*9*10.25

Motor powder (KW)

145-165

185-204

263

263-290

380-430
