Quartz stone ultra mill, quartz powder ultrafine mill
Quartz is an abundant mineral in the Earth's continental crust. There are many different varieties of quartz, several of which are semi-precious gemstones. Throughout the world, varieties of quartz have been, since antiquity, the most commonly used minerals in the making of jewelry and hardstone carvings. Quartz is the source of many silicon compounds such as silicones (e.g. high performance polymers), silicon (e.g. microelectronics), and many other compounds of commercial importance. Quartz in the form of sand is reduced by carbothermic reaction as a first step in these energy-intensive processes. Owing to its high thermal and chemical stability and abundance, quartz is widely used in many large-scale applications related to abrasives, foundry materials, ceramics, and cements.
Quartz stone ultra mill, quartz powder ultrafine mill is a new type machine to grind quartz stones/ quartz ores into super thin Powder.The final Powder size can be from 5micron to 47micron as per 97% passing rate.
Quartz stone ultra mill, quartz powder ultrafine mill is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs’ hardness scale under seven, such as calcite, chalk, limestone, dolomite, carbon black, bentonite, kaolin, talc, mica, magnesite, illite, pyrophyllite , roseite, sea-foam, attapulgite , rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice etc. totally more than 100 kinds of materials.
Finished powder products are in the 325meshs -3000meshs, and yield can be up to 0.5-12 tons per hour. There are five types of Shanghai CLIRIK HGM series Quartz stone ultra mill, quartz powder ultrafine mill, they are HGM80, HGM90, HGM100, HGM100A and HGM125.
Detailed Product Description about Quartz stone ultra mill, quartz powder ultrafine mill, stone grinding mill
Quartz stone ultra mill, quartz powder ultrafine mill is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, and talc etc, totally more than 100 kinds of materials. Product fineness can be controlled between 300~3000 mesh (47~5 micron)
Comparable with ball mill, Quartz stone ultra mill, quartz powder ultrafine mill has features of low cost, high capacity, easy operation; Comparable with Raymond mill for coarse powder up to 325 meshes, it can produce fine powders between 47 and 5 microns (300 to 3000 meshes)
Production Line Configuration of Quartz stone ultra mill, quartz powder ultrafine mill, stone grinding mill

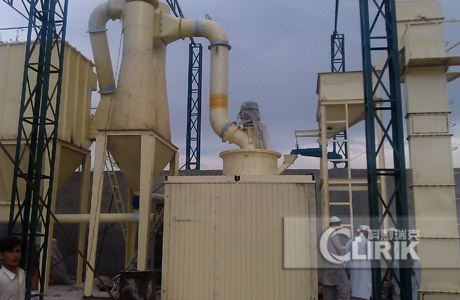

The whole set HGM Quartz stone ultra mill, quartz powder ultrafine mill consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems
Working Principle of Quartz stone ultra mill, quartz powder ultrafine mill:
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
Performance and features of Quartz stone ultra mill, quartz powder ultrafine mill:
1. High efficiency
Under the same final size and power, the product capacity of quartz powder ultrafine mill is twice than jet mill and agitation mill.
2. Long lifetime of wearing parts
The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.
3. High safety and reliability
There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.
4. High fineness of products
The product fineness can reach D97≤5μm.
5. Environment friendly
The application of DMC-120 pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1300 | |
| Ring Number(PCS) | 3 | 3～4 | 3 | 4 | 4 |
| Roller Number(PCS) | 21 | 24～32 | 27 | 34～36 | 40～44 |
| Main Shaft Speed(r.p.m.) | 230～240 | 200～220 | 180～200 | 135～155 | |
| Input Size(mm) | ≤20 | ||||
| Finished Size/um(mesh) | 5-47(325~2500) | ||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| Outlet Size (L*W*H, m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | |
| Motor Power(KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
Company strength
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
So far, we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.
We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment,optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.
